Port Forward Opener on OpenBSD

This setup allow external users to connect to internal servers through port forwarding.

Usefull for small offices when:

• You cannot use vpn
• You don't like port knocking

Let's say a user wants to connect to the server with RDP

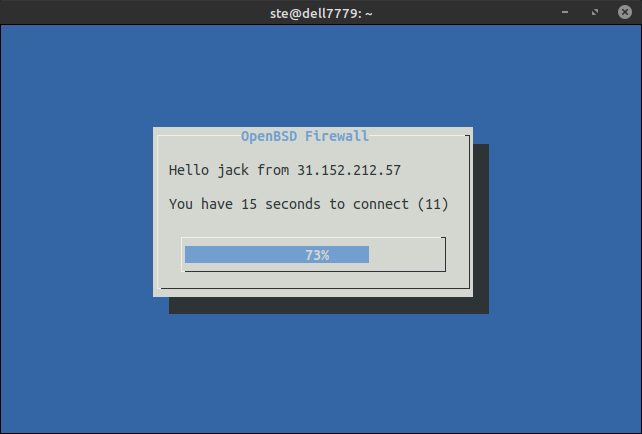

1. The User makes a SSH connection to firewall.
2. The Firewall allows for a few seconds the IP of the user to connect to the internal server.
3. The User makes a RDP connection to the internal server
4. The Firewall closes SSH connection automatically.

It's not ready for production, don't use it if you don't know exactly what you are doing

Addressing Scheme Example

                           [Desktop A] [Desktop B] [Desktop C]
                                |           |          |
[DSL]---[Firewall]---[Switch]---+-----+-----+-----+----+
                                      |           |
                                  [Server]     [Printer]



 Address        Node          Port Forward
 -------------  ------------  ------------------------
 192.168.1.1    DSL Router
 192.168.1.2    Firewall WAN    22 < 60022
 192.168.2.1    Firewall LAN

 192.168.2.11   Desktop A       22 < 60122, 3389 < 63381
 192.168.2.12   Desktop B       22 < 60222, 3389 < 63382
 192.168.2.13   Desktop C       22 < 60322, 3389 < 63383

 192.168.2.200  Server        3389 < 63389
 192.168.2.201  Printer

Dependencies

pkg_add vim dialog # nothing works properly without vim

Network Settings

💾 vi /etc/hostname.em0

dhcp

💾 vi /etc/hostname.stge0

media 100baseTX
mediaopt full-duplex
inet 192.168.2.1 0xffffff00

💾 vi /etc/mygate

192.168.1.1

💾 vi /etc/resolv.conf

nameserver 9.9.9.9
nameserver 1.1.1.1

DHCP Server

💾 vi /etc/dhcpd.conf

option  domain-name "taxstudio";
option  domain-name-servers 9.9.9.9;

subnet 192.168.2.0 netmask 255.255.255.0 {
    option routers 192.168.2.1;
    range 192.168.2.11 192.168.2.19;
}

💾 vi /etc/dhcpd.interfaces

stge0

Test server dhcpd -d -c /etc/dhcpd.conf

Start DHCP server at boot

rcctl set dhcpd flags stge0
rcctl enable dhcpd
rcctl start dhcpd

Show leases

cat /var/db/dhcpd.lease

Firewall

Port forwarding

sysctl net.inet.ip.forwarding=1
echo 'net.inet.ip.forwarding=1' >> /etc/sysctl.conf
sysctl | grep ip.forwarding

Rules

💾 vi /etc/pf.conf

wan = em0
lan = stge0

#----------------------------------
# Defaults
#----------------------------------
pass out keep state

set skip on lo
set block-policy return
set reassemble yes

block in all
block return

match in on $wan scrub (no-df max-mss 1440)
match out on $wan scrub (random-id)

antispoof quick for { $wan lo0 }

#----------------------------------
# Input
#----------------------------------
pass quick on $lan
pass in quick proto tcp to $wan port 22 keep state
pass in quick on $lan

#----------------------------------
# Output
#----------------------------------
pass out on $lan inet keep state

#----------------------------------
# NAT
#----------------------------------
match out on $wan from !($wan) nat-to ($wan)

# Allow outgoing traffic for LAN and the gateway
pass out quick keep state
pass in on { $lan } inet

Enable

pfctl -d
pfctl -f /etc/pf.conf
pfctl -e

Setup Opener

Start at boot and listens the port 3000

echo "/firewall/fw-server.sh" >> /etc/rc.local

Add Users

1. Add user to system

# fw.sh will executed on user login
useradd -d /dev/null -s /firewall/fw.sh jack
passwd jack

2. Add user to opener

Add one or more pf rules to user file.

vi firewall/user/jack

An example to allow user jack to make RDP connections to host 192.168.2.12:

pass in proto tcp from IP to $wan port 63389 rdr-to 192.168.2.12 port 3388

The $wan changes according to the address of the SSH connection that the user makes every time

Todo

• chroot shell
• email activity
